    Z Type Bucket Elevator Conveyor

    Ask Lasest Price
    Brand Name : TOUPACK
    Model Number : Z-Type Bucket Elevator
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 30set per month
    Delivery Time : 10-25 working days
    • Product Details
    • Company Profile

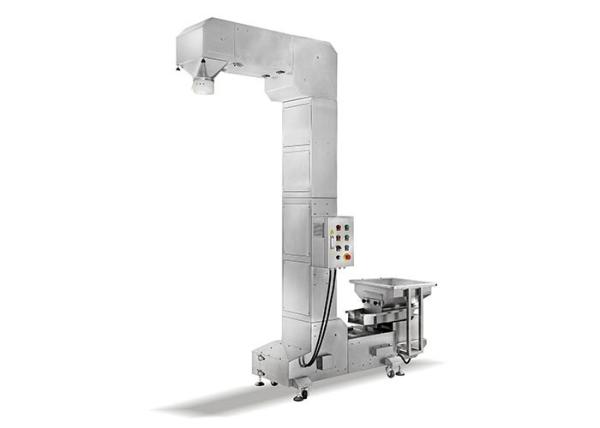

    Z Type Bucket Elevator Conveyor

    Z Type Vertical Lifting Transport Bucket Elevator Conveyor for Material Transportation


    Application:


    The equipment is widely used in where multi-point feeding and discharging is needed. Usually it works together with weighing & packaging machines and color selecting machines on automatic production line. The products elevated vary from pet food, puffed food, fodder, candies, dried fruit, health food, grains, chemicals, hardware, etc.


    Main Function & Features:


    1. The bucket is made of food grade PP material with good looking, free of deformation as well as of low and high temperature resistance.

    2. Compact structure design for space saving the Lifting height and machine size can be customized.

    3. Fully enclosed structure leaves the machine no chance for leakage or pollution. Low rate of material damage. Ideal for non-sticky product conveying.

    4. Adjustable conveying speed and easy maintenance, disassembly and cleaning.


    Technical Parameters:


    ContentsSpecifications
    Body Materialcarbon steel / SUS304
    Hopper Volume1.0L / 1.8L / 3.6L
    Hopper Surfacedimple / plain
    Power Supplysingle / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW
    Conveying Capacity2.5m³/h / 4m³/h / 8m³/h
    Machine Dimension(mm)per customer’s requirement
    Vibrating Feederdetached / independent vibrating feeder
    Feeder Volume70L / 100L / 150L / 200L
    Discharge Funnelsingle / double / multiple

    Z Type Bucket Elevator ConveyorZ Type Bucket Elevator Conveyor
