32 Heads Mixing Small Granules Multihead Weigher

Ask Lasest Price
Brand Name :	TOUPACK
Model Number :	TY-A-M32-1; TY-A-P32-1
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100set per month
Delivery Time :	10-25 working days

Add to Cart

Product Details
Company Profile

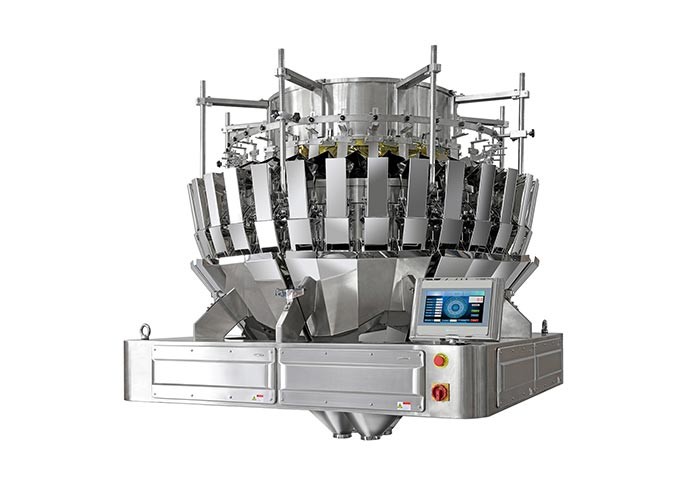

32 Heads Mixing Small Granules Multihead Weigher

32 Heads Mixing Weigher For Weighing Small Granules Products Multihead Weigher

Features :

1.Can use for 2 in 1, 3 in 1 and 4 in 1 mixing products.
2.More hopper to combination,higher accuracy
3.The weight of the mixing can be automatically compensated by the last products.
4.High accuracy and tailored load cell.
5.Intelligent alarm diagnosis.
6.High speed stagger dump function.
7.New Modular and CAN bus technology, more efficient and stable.
8.Modbus Industry communication protocol.

Techanical and Character :

1. Upper storage funnel is divided to weight two different products.
2. Separate main vibrator, control the thickness of product independently.
3. Integral machine frame and machine cabinet contributes to more stability and higher accuracy.
4. Uniform design standards, and mould processing, contribute to better interchangeability for spare
parts.
5. Stable actuator design reduce the mechanical vibration and improves the load cell value accuracy.

Specifications:

Model	TY-A-M32-1; TY-A-P32-1
Max. Weighing (one hopper)	5-200g
Accuracy	x (0.5)
Min. Scale Interval	0.1g
Max. Speed	120 WPM
Hopper Volume	0.8L/0.5L
Control System	MCU / PLC
HMI	7’’ / 10’’ color touch screen
Power Supply	AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension	1,370(L)1,060(W)1,105(H)mm
Package weight	240kg

Detail:

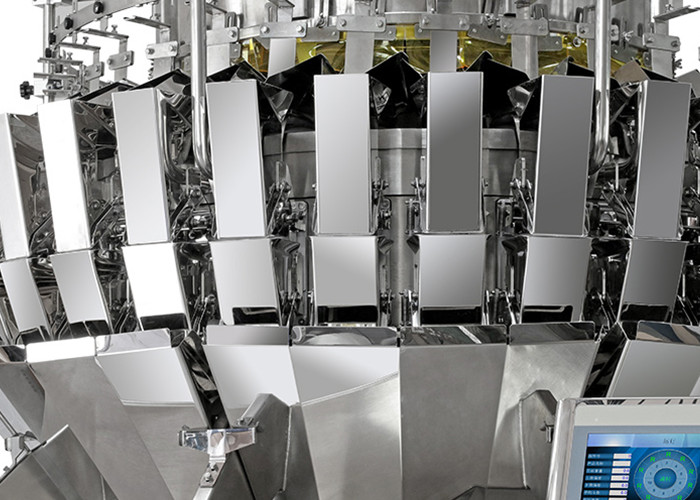

32 Heads Mixing Small Granules Multihead Weigher
