2.5L Granules Multihead Weigher

Ask Lasest Price
Brand Name :	TOUPACK
Model Number :	TY-A-M14-1; TY-A-P14-1
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	100set per month
Delivery Time :	10-25 working days

Add to Cart

Product Details
Company Profile

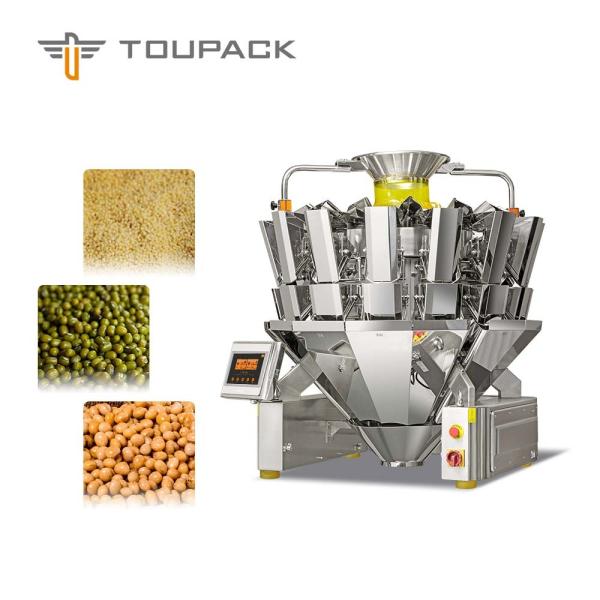

2.5L Granules Multihead Weigher

Fully Automatic Multihead Weigher And Granules Food Packing Machine

Application:

Applicable for weighing of all types of small-sized / dosed, granular products, such as prepared herbal medicine, tea, seeds, MSG, chicken essence seasoning, coffee beans, chocolate beans, etc.

High speed and high accuracy combination, select the best combination from plenty weights combination through computerized calculation.
Fine adjusted the opening and closing speed of the bucket door to avoid crush and block.
Quantitative weighing function.
304 Stainless steel structure, easy for cleaning.
Displaying every vibration for working performance monitor.
Presetting 99 sets of parameter for programming.
Multilanguage control panel. Chinese/English etc.

Specifications:

Model	TY-A-M14-1; TY-A-P14-1
Max. Weighing (one hopper)	5-200g
Accuracy	x (0.5)
Min. Scale Interval	0.1g
Max. Speed	120 WPM
Hopper Volume	0.8L/0.5L
Control System	MCU / PLC
HMI	7’’ / 10’’ color touch screen
Power Supply	AC220V ±10% 50HZ / 60HZ, 2KW
Packing Dimension	1,370(L)1,060(W)1,105(H)mm
Package weight	240kg

Intergrated system:

Product details:

A. Z type elevator: It is using to help user achieve product automatic feeding and stopping when packing machine need.

B. Multi-head weigher: using to automatic weighting and filling the product, very accurate,the weigher's computer determines the weight of product in each individual weigh hopper and identifies which combination contains the weight closest to the target weight.Then opens all the hoppers of this combination and the product falls, via a discharge chute, into a bagmaker or, alternatively, into a distribution system which places the product.

C. Platform: normally using to support weigher and easy for operator to cleaning and inspecting when real production.

D. Sealing part: adopt servo motor film pulling, servo motor sealing, working with horizontal zig cut effect, make the packing speed faster and bag sealing better.

E. Finished products conveyor: it is using to help user receive the product when after package and send into next process.

Machine adopt PLC control system and air cylinder for operation, make sure each parts can be working independent and easy for maintain and cleaning.

More intergrated system:

2.5L Granules Multihead Weigher
