Brand Name : | TOUPACK |
Model Number : | Adjustable Elevating Stand |
Price : | Negotiable |
Payment Terms : | T/T, L/C |
Supply Ability : | 30set per month |
Delivery Time : | 10-25 working days |

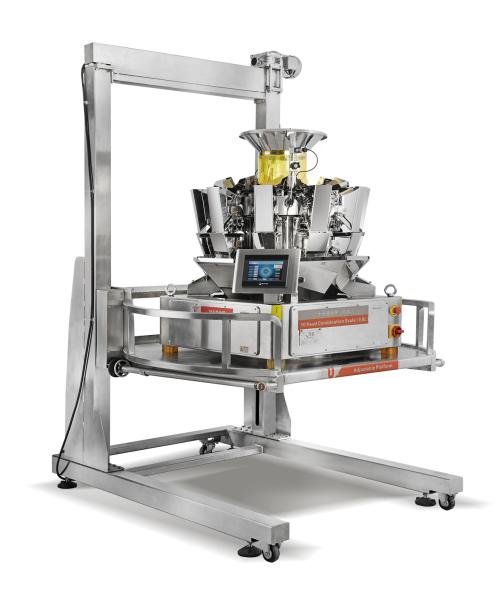

Adjustable Elevating Stand Stainless Steel Working Platform In Packing Line
Application:
Mainly used for supporting multihead weigher, packaging machine and or corresponding equipment.
Main Functions & Features:
1. Significant space saving.
2. Quick moving, lifting, and able to connect with other production lines.
3. Flexible and able to adapt to various production requirements.
4. The moving and lifting function makes cleaning and maintenance more efficient and simple.
5. Improved the practicality of the packaging system with a wide range of applications.
Technical Parameters:
Contents | Specifications |
Body Material | SUS304 |
Lifting Range | 750~1,900mm |
Power Supply | single / 3 phrase 220V/380V 50HZ/60HZ, 0.55KW |
Lifting Speed | 0~490mm/min |
Lifting Load | 800kg |
Dimension(mm) | custom-made per requirement |
![]() |
