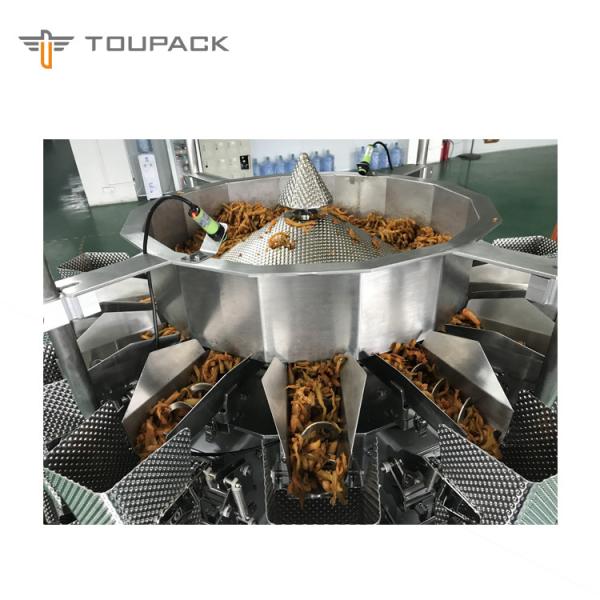

14 Head Automatic Multihead Weigher for Sticky Food Weighing Machine

Features:

1. Stainless steel waterproof IP65 machine frame; Dimple plate.

2. Screwing feeding system to ensure smooth discharge.

3. Rotary main top cone without screws outside, avoid blockage with bacteria.

4. Scraping hopper double doors to reduce time of closing doors.

5. 60 degree discharge chutes, ensure sticky products will not stay on the discharge chutes to affect

accuracy .

6. Protection device in low temperature to prevent electronic parts from damage in wet working

condition.(Option)

7. Improved MCU control system.

Application:

Sticky or wet products.

1. Whole machine IP65 water proof, easy to clean and wash by water.
2. With excellent compatibility and easy using with other packing equipments.
3. With stable 10-14 bucket structure, to choose the best combination instantaneously from abundant weight combinations by computer.
4. With instantaneous reaching of correct calculating by high-precision load cell.
5. With 11 languages to choose and LCD screen
6. The open & close speed of the material dipper cover can be finely regulated according to the features of the measured material to prevent crashing and damage
7. All the parts touching the material are made by 304 stainless steel, neatness and hygiene.
8. Measuring method: Load cell
9. Way of drive: Driven by step motor
10. Form of bucket: Double-row non-memory buckets
11. Preset function: Max50choices, easy to keep your products and weight data for future use.

Net weight: 260kg, gross weight: 300kg
Packing size: 108X108X125cm


Technical:
Each dump weighing range 8-1000g
Combination capacity Max 3000ml
Highest speed 60 bags/min
Length of material Max 150mm
Each bag error 0.1-1g
Weighing accuracy 0.1-1g
Mode of driving Step motor
Form of dipper Double-row non-memory dippers
Preset function Max 50 choices
Material The part contacting materials is made of 304 stainless steel
Level control Photoelectricity(pass type)
Power source AC200/220V± 10% 1.5kVA
Dimension 950(L) * 950(W) *1020(H)mm

Specifications:

Since 2002, We entered in High-tech industry and TOUPACK has established in 2009. TOUPACK is the first company to apply Siemens/Allen-Bradley PLC on multi-head weighers in China. Being a high-tech company, TOUPACK has worked as a business partner with Guangdong Meiweixian (Zhongshan), Anhui Qiaqia (Hefei) and many other well-known packaging machinery and food companies by supplying them with automated and intelligent weighing and packaging solutions. We are specialized in weighing, packaging, conveying, multi-weight sorting and detecting machines. Almost all of our products have got patents.Besides Our company has over 10 years of customized system integration experience and we support complete technical support and good after-Sale service.

•Wide Range of Product

Working in weighing, packaging, conveying, multi-weight sorting and detecting machines.

•Product Patents

Almost all of our products have gained CE certificate、ISO9001 certificate，IP65 and IP67 Waterpoorf and Dustproof certificate.

• Professional R&D Team

The number of skilled engineers take up 63% of total employees.

•10 Years of Customized System Integration

Providing all kinds of customized intelligent weighing and packaging solutions.

•Complete Technical Support

All of products is at least 12 month warranty and any enquiry will be responded within 24 hours.

• After-Sale Service

TOUPACK has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
