1. Z conveyor and its feeder:
The conveyer is applicable for vertical lifting of grain material
in departments such as corn, food, fodder and chemical industry,
etc.
For the lifting machine, the hopper is driven by the chains to
lift. It's used for vertical feeding of grain or small block
material. It has advantages of large lifting quantity and highness.
The height of lifting: 360cm (discharging height 310cm)or others
can be made according to customer's need.
Conveyor speed controlled by inverter. Bucket movement controlled
by level sensor.
Max 90buckets/min
Power: 550W Voltage: 220V
Size: 3200x435x3650mm
Packing size: 1) main body:200x120x110cm=2.64CBM, about 300kg gross
weight
2) vibration feeder: about 0.7CBM, about 100kg gross weight
2. 10 /14 heads multihead weigher:
Main Features
1) The most efficient and accurate weight calculation by computer.
2) Circle dump avoid materials drops together to avoid break and
pile up
3) 10.1 inch touch screen with multiple languages.
4) Adjustable backlight control for vision protection
5) Compatible with single packaging machine for automatic weighing.
6) Instant hopper vibration index for better control.
7) 50 preset programs for multiple tasks.
8) Individual setting linear vibration amplitude
9) Templated motor drive, convenient for dismantling
Use rangeFood: Snack, candy, sugar, beans, chips, frozen food,
sticky food, salad, pet food
Non food: small screws, buttons, nails, toys
Weight range:8g-1500g/dump
Max speed60bags/min
Weight accuracy±1g
Buckets10pc 1.5L weighing buckets
Operate language English, France, Spanish, Hungary, Germany,
Finland.
Drive By step motor

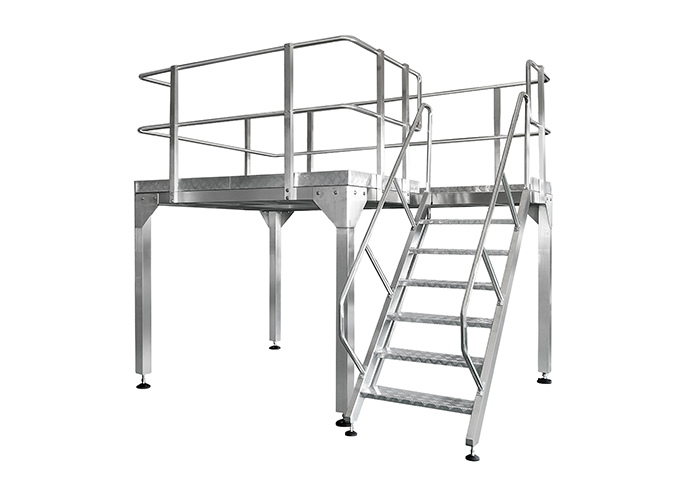

3. Platform:
4. Vertical packing machine :
Features:
Suit for: OPP/CPP, CPP/PE, MST/PE and other types of heat sealing
film
The touch-sensitive screen can display the state of machine,
operation in struction and the state of breakdown in either Chinese
and English, easy operation
It has a compact structure and every component has been made
carefully, and the touching part of material are made by stainless
steel
For guaranteeing stable ling-term operation of the machine,
electrical equipments and pneumatic equipments are all made by
famous manufacturers of the world
The date printer has an alarming equipment of no ink belt, without
escaping printing.
Specification:
Packaging speed: 5-60bag/min
Bag making size: (L)50-300mm (W)60-200mm
Bag making type: pillow bag, vertical bag and make hole equipment
(need to add extra money)
Filling range: 150-1300ml
Max packaging film width: 440mm
Film thickness: 0.04-0.08mm
Air consumption: 200L/min
Total power/ voltage: 2.2KW/220V, 50-60HZ
Outside size: 1400X970X1600mm
Gross weight: 400kg
Application:
Grain, strip and slice materials such as expanded food, shrimp
cracker, candies, peanuts and popcorns.
Package for grain materials such as rice, salt, jelly, mung bean
oatmeal and laundry powder.
Function:
The design of this machine is reasonable and elaborate. Its
performance is stable and it is easy to handle. It can cut the edge
of every single bag or every several joint bags according to
specific requirement. All proceedings of feeding, measure,
bag-making, date printing, filling, puffing, sealing, cutting and
outputting finished products are finished automatically.
5. Discharge conveyor:
(stainless steel main frame and food class belt)
Feeding speed30m/minute
dimension2110×340×500mm
Voltage220V/45W
Packing size179x48x53cm
Net weight60kg
Gross weight85Kg
6. Rotary table:
Our Rotary Turntables are fabricated in s/s making it suitable for
the food, beverage, chemical clean rooms and pharmaceutical
industry.
Made by 304 stainless steel
Diameter:1000-1200mm
Height: 70-80cm (with the leg, so can adjust the height)
Speed: adjustable, controlled by governer
Power:220V. 50hz or 110V 60HZ, 60W
Max speed: 14-25turns/min
