High Speed Sticky Materials Weighing 7 -Head 160 Flip Type Weigher
For Octopus Beef Slices
Application:
7-Head 160 Flip Type Weigher is suitable for fresh and aquatic
industry. The single material is large in volume and irregular in
shape, such as the whole fish, sausage, hair belly, beef slices and
sashimi and other sticky materials.
Functional Performance:
——High speed, high precision:Adopt high-precision digital sensor,
fast sampling speed and high precision.
——Zero tracking:Can be reset manually or automatically, and dynamic
zero tracking.
——Weighing accuracy:The latest optimized sampling algorithm to
improve weighing accuracy.
——Material blocking problem : Multiple feeding hopper discharges
can effectively solve blockage.
——Precise localization :Intelligent fault detection and error
reporting, accurate positioning to solve problems.
——Accurate counting:The combination of weighing and counting
functions improves counting accuracy.

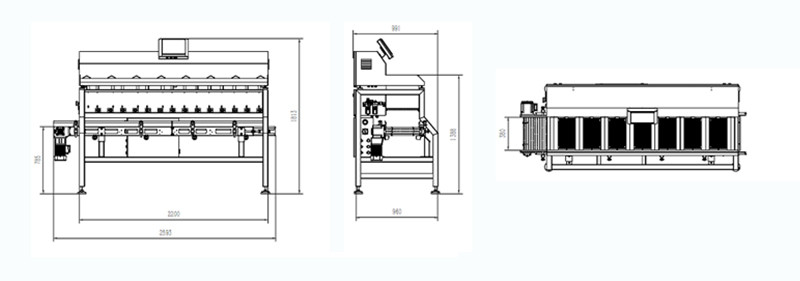

Overall Dimension:
Action Performance:
Each weighing hopper corresponds to two memory buckets in the lower
layer. After taking the value, turn left and right to put the
material into the corresponding memory bucket respectively. A total
of 14 memory buckets in the lower layer participate in combining
the target weight value. The combined material is put into the
lower aggregate conveying line and transported to the subsequent
station.
1. Flip weighing bucket, no bucket door structure, avoid material
clamping.
2. The weighing unit is distributed in a single row, which is easy
to operate and is equipped with an automatic feeding device.
3. The corrugated structure of the material contact surface reduces
the friction force of the contact surface and prevents the material
from sticking and remaining.
Specifications:
Model | TY-ZHZ072M160-01-11 |
Power Supply | AC220V±10% 50Hz (60HZ) |
Rated power | 1kW |
Max.Weighing (one hopper) | 50~1000g |
| Accuracy | ±0.5g |
| Min.Scale Interval | 0.1g |
| Weighing speed | 20~25 BPM |
Weighing material size | ≤280mm(L)*80mm(W)*50mm(H) |
| Product dimensions | 2600mm(L)*1000mm(W)*1800mm(H) |
Control system | MCU |
Preset Product Number | 99 |
| Operating Direction | Face the machine, from right to left |
| External air source | 0.6-1Mpa |
Work environment | Temperature:0℃~40℃ Humidity:30%~95% |
>>Why choose us:
ㆍOver 12 years weighing and packing machine design & manufacturing
experience
ㆍOver 60 countries customers choices
ㆍProfessional team with passion and diligence
ㆍAll-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance
are available for you.
2. If any problems happened, telecom or online face to face
communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for
your countries.
4. The machine will have 1 year warranty of machine.
FAQ:
Q1: Are you a manufacturer or a trading company?
A: We are manufacturer, we have professional factory in Guangdong
China.
Q2. Do you sell the accessories for products?
A: Yes. We have Match the parts for our testing equipment.
Q3. How about the packing for product?
A: We takes of wooden case and it is very safe.
Q4. Do you accept customer Logo and customized?
A: we accept kinds of customized and logo of all of our products
for customers.
Q5. What's your main product?
A: We are specialized in multi-head weigher, conveyor machine,
packing machine, Metal detector, Check weigher and other related
electronic products and machine.
Q6. How about your after-sales policy?
A: Customer First. We have our own R&D team and we can offer
tech-support. All of our products normal warranty is 12months.
