High Speed Stainless Steel Check Weigher Machine Waterproof CW300
Check Weigher Features:
1. Intelligent design, automatic parameter adjustment and easy
operation.
2. Material dense alarm, automatic generate column production
report.
3. Conveyor structure adopts detachable design for easy disassembly
and cleaning.
4. PLC control system, standard industrial control screen, easy to
expand other value-added applications, such as multi-stage weight
sorting, weight feedback, etc.
Application:
It is suitable for testing whether the weight of single / single
package / single box products is qualified. It is widely used in
electronics, pharmaceutical, food, beverage, health products, daily
chemicals, light industry, agricultural and sideline products and
other industries. At the same time, it is applicable to the
detection of missing parts in the whole box; Such as: lack of
bottles, boxes, numbers, pieces, bags, cans, etc.
Checkweigher Specifications:
| Model | TYA-CW300 | TYA-CW400 | TYA-CW500 |
| Weighing Range | 10kg | 20kg | 30kg |
| Weighing Accuracy | ±2g | ±5g | ±10g |
| Weighing Resolution | 0.1g | 0.1g | 0.1g |
| Max Speed | 65P/M | 50 P/M | 30P/M |
| Belt Width | 300mm | 400mm | 500mm |
| Weighing Belt Length | 450mm | 570mm | 1050mm |
| Infeed/Outfeed Belt Lenght | 450/800mm | 570mm/Roller 930mm | Roller Rejector 800mm |
| Power Supply | AC220V ±10%/1P/0.5KW | AC220V ±10%/1P/0.5KW | AC220V ±10%/1P/0.5KW |
| Control System | High speed A/D sampling controller | High speed A/D sampling controller | High speed A/D sampling controller |
| Pre-set Prod. No. | 99 | 99 | 99 |
| Belt Height | 750±50mm | 750±50mm | 750±50mm |
| Optional Rejector | Air blower | pusher | Pusher |
High Speed Stainless Steel Check Weigher Machine Waterproof
Automatic

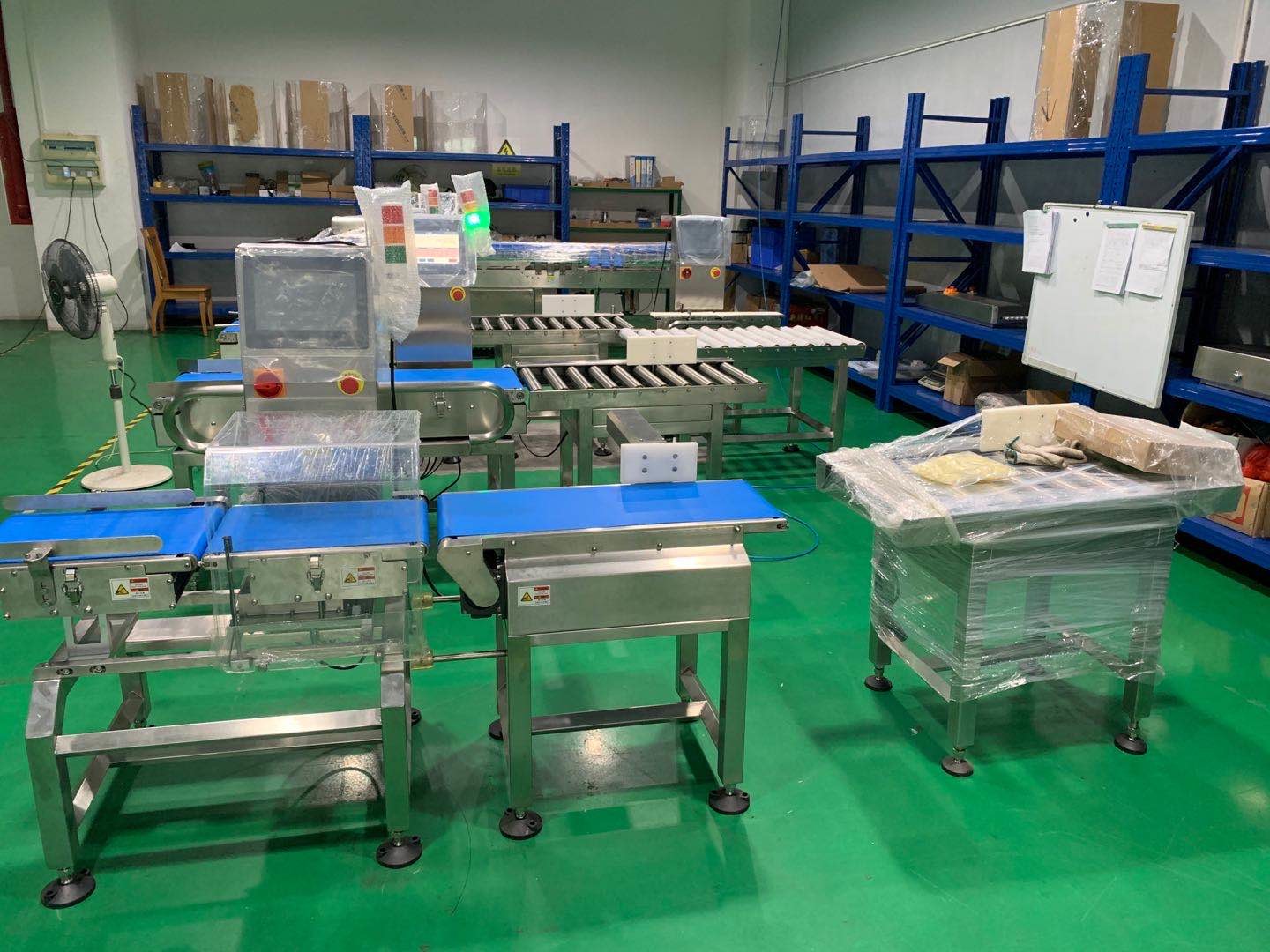

Photos:
FAQ
1. What is Checkweigher?
A checkweigher is a high-precision weight measuring instrument. It
is designed to check the weight of individual products during the
manufacturing process on production lines.
Checkweighers are predominatly used as part of a manufacturing
quality control programme. Their weighing results are required to
ensure that manufacturing sites comply with local packaging laws
and regulations during production.
A checkweigher ensures that every product leaving a production line
is the right weight. They are key to ensuring manufacturers deliver
quality products that promote high levels of customer satisfaction.
Selling underweight products can result in companies being fined or
subject to other penalties. Overweight products generate
unnecessary and expensive product giveaway. Checkweighers can be
used in near to all industries as part of an effective quality
assurance system. These include: Food, Pharmaceuticals, Cosmetics
Beverages, Transport/logistics, Chemicals, Automotive, Metal
manufacture and fabrication industries, etc.
2. What are the differences between static and dynamic checkweighers?
The main differences between static and dynamic checkweighers are:
a. Static checkweighers measure the weight of products that stand
still. Dynamic checkweighers weigh products in motion.
b. Static checkweighers are used for manual weighing of products or
for sample spot-checking. Dynamic checkweighers automatically check
100 % of the products produced
c. Static checkweighing is a labour intensive process. It requires
manual product weighing, recording of the result and then product
removal for the next weighing procedure. Dynamic checkweighing is
entirely automatic. Products are weighed as they pass along a
production line, with off-weight products rejected from the
production line by automated removal devices such as pneumatic
pusher arms or air-jets.
3. Reasons for a Checkweigher in Your Production?
Checkweighers have long been a key element of production
operations, as they are capable of far more than just weighing, and
can actually optimise your whole production process. Benefits of a
checkweigher include:
1). avoid costly fines with 100% weight inspection
2). keep fillers operating in synchronisation
3.) save material, so as to produce more products and profits
4). mprove production processes and equipment efficiency
5). save labor and personnel costs
6). reduce false rejects and rework
7). maintain the identity of your brand
4.Why choose us
1.Over 12 years weighing and packing machine design & manufacturing
experience
2.Over 60 countries customers choices
3.Professional team with passion and diligence
4.All-in-one stand service
After-sale services:
1. Manual / Videos of machine installation, adjusting, maintenance
are available for you.
2. If any problems happened, telecom or online face to face
communication available 24 hours.
3. Engineers & technician Engineer available to serve machines for
your countries.
4. The machine will have 1 year warranty of machine.
